For Developers

Platform Overview

MIFY is a 47-package TypeScript monorepo: Hono API (171 production route files), Next.js 15 frontend (205 pages), PostgreSQL + pgvector, Redis, Prisma 6, and 126 native nodes across 24 categories.

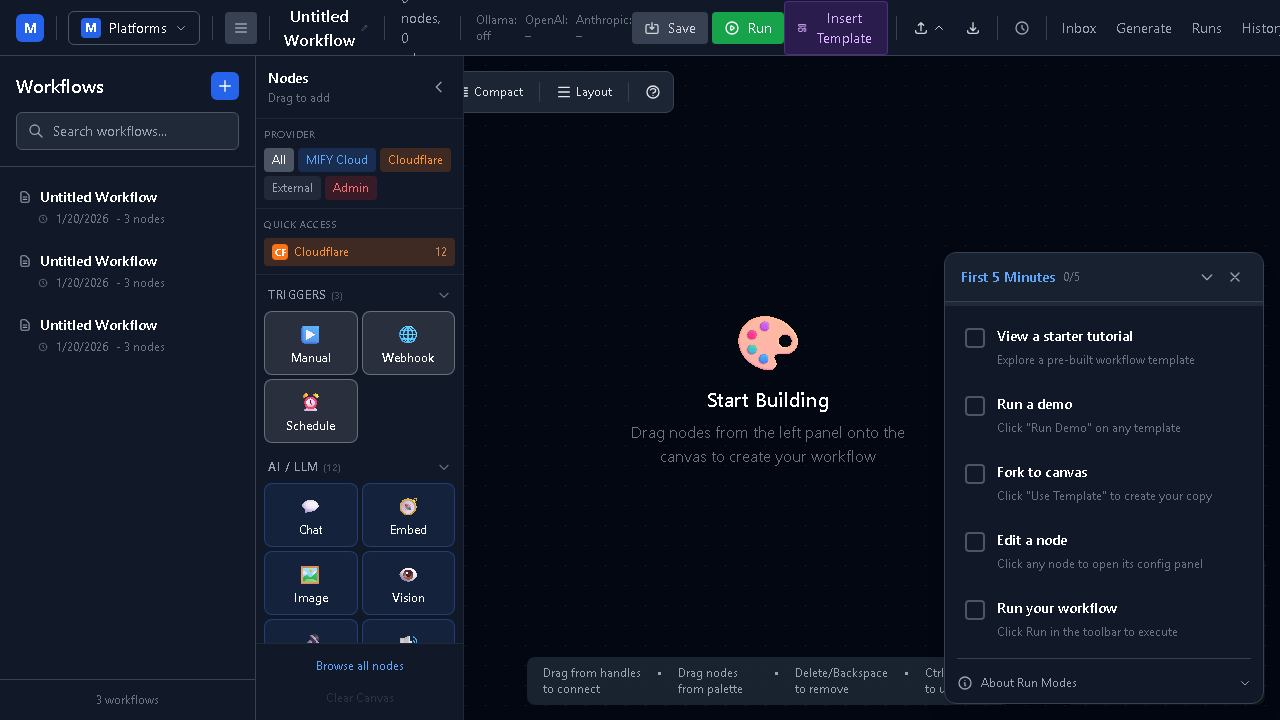

MIFY Canvas — visual workflow editor with 126 nodes

Access

MIFY is not open-source at this time. Access is available through the hosted platform or by arrangement with the MIFY team.

What’s available now:

Hosted platform — use MIFY at mify.com
API access — REST endpoints for programmatic integration
Plugin system — build and publish plugins without access to the core codebase

Coming later:

The Home Client (local agent runtime) may be released as a public repository
Additional open-source components may follow

API (171 route files)

Full interactive reference: API Explorer | API Reference

Core Workflow API

# CRUD
POST   /api/graphs              # Create workflow
GET    /api/graphs              # List workflows
GET    /api/graphs/{id}         # Get workflow
PUT    /api/graphs/{id}         # Update workflow
DELETE /api/graphs/{id}         # Delete workflow

# Import from external platforms
POST   /api/graphs/import/flowise
POST   /api/graphs/import/dify
POST   /api/graphs/import/langflow
POST   /api/graphs/import/n8n

# Execution
POST   /api/graphs/{id}/run-templates/{tid}/execute
GET    /api/graphs/{id}/comparison-history
POST   /api/graphs/{id}/baseline

Content Generation API

POST   /api/content-gen/queue           # Async GPU generation (ComfyUI)
POST   /api/content-gen/provider        # Sync/streaming from AI providers
POST   /api/content-gen/comfyui-local/finalize  # Local ComfyUI
GET    /api/content-gen/runs            # History
GET    /api/content-gen/runs/{id}       # Run detail

Execution & Training API

POST   /api/execution/runs              # Submit image/video/vision job
POST   /api/execution/training/submit   # Submit training run
POST   /api/execution/training/datasets/upload  # Create dataset
POST   /api/execution/training/datasets/{id}/presign-file  # R2 upload URL
GET    /api/execution/training/models   # Model registry

Knowledge Base / RAG API

POST   /api/knowledge-bases             # Create KB
POST   /api/knowledge-bases/{id}/ingest # Ingest documents
POST   /api/knowledge-bases/{id}/search # Semantic search

Other Key APIs

Area	Base Path	Endpoints
Templates	`/api/templates`	Browse, categories, enterprise
Evaluations	`/api/evaluations`	Datasets, runs, results
Chat	`/api/chat`	Sessions, messages
Tools	`/api/tools`	CRUD for agent tools
AI Builder	`/api/ai-builder`	Natural language → workflow
Prompt Lab	`/api/prompt-lab`	Prompt versioning, A/B compare
Vector Stores	`/api/vector-stores`	Store, query vectors
Batch	`/api/batch`	Batch job management
Triggers	`/api/triggers`	Webhook, schedule, event triggers
Packs	`/api/packs`	Provider pack management
ComfyUI	`/api/comfyui`	Workflow registry, job submission
Plugins	`/api/plugins`	Plugin ecosystem

126 Native Nodes (24 Categories)

Category	Count	Key Nodes
Platform	30	Dify, Flowise, Langflow, n8n, ActivePieces, Node-RED, Composio static actions (Apollo, Zoom, Linear, Notion), 20+ more
LLM	13	Chat, Embed, Image, Vision, ASR, TTS, Translate, Classify
HITL	12	Pause, review gates, Home Client runtime nodes
I/O	11	HTTP, Cloudflare D1/KV/R2/Queue
RAG	8	Ingest, Chunk, Embed, Store, Retrieve, Rerank
Agent	11	ReAct, Multi-Agent (Plan-and-Execute, Reflection, Supervisor, Swarm), CLI Agent, EnvInspect, Browser Use, Computer Use
Control	6	Route If, Route Switch, Loop Map, Sub-Workflow
Safety	3	PII Detector, Injection Detector, Jailbreak Detector
Enterprise	8	Email, Calendar, Notifications, Messaging
Sandbox	5	sandbox.exec, sandbox.plan, sandbox.session, host.apply, workspace

Substrate System (Sandbox Execution)

Execute commands in isolated environments:

Substrate	What It Does
RawHostSubstrate	Execute on host machine directly
CloudflareSandboxSubstrate	Execute in Cloudflare Workers Containers
SubstrateRouter	Routes requests to appropriate substrate

New sandbox nodes: mify.sandbox.exec, mify.sandbox.plan, mify.host.apply, mify.workspace, mify.sandbox.session

Backend Capability Registry (Session-4)

Each runtime backend (LLM, document parser, browser, sandbox) is fronted by a resolver that picks per-workspace credentials with org/global fallback. Resolvers expose a BackendCapabilityManifest that auto-generates admin + workspace UI pages.

Capability	Workspace Setting	Admin Fallback
LLM	`/workspaces/[id]/settings/llm`	`/admin/llm-fallback`
Document Parser	`/workspaces/[id]/settings/parser`	`/admin/parser-fallback`
Browser	`/workspaces/[id]/settings/browser`	`/admin/browser-fallback`
Sandbox	`/workspaces/[id]/settings/sandbox`	`/admin/sandbox-fallback`

API: /api/admin/{llm,parser,browser,sandbox}-fallback/* and /api/workspaces/:id/settings/{llm,parser,browser,sandbox}/*.

Graph Versioning (W16-1)

Every published version of a workflow is captured in the GraphVersion table for rollback, diff, and audit.

# List versions
GET    /api/graphs/:id/versions

# Publish current draft as a new version (idempotent)
POST   /api/graphs/:id/publish

# Archive the currently-published version
POST   /api/graphs/:id/archive

# Fork a prior version into a new draft (resurrect/edit)
POST   /api/graphs/:id/draft-from/:versionId

# Diff two versions (3-layer JSON diff with d-m-p text deltas)
GET    /api/graphs/:id/versions/:vA/diff/:vB

UI at /graphs/[graphId]/versions — VersionPicker, VersionDiff (line-level via diff-match-patch), and LifecycleControls.

Durable Workflow Execution + Time-Travel (W16-10)

Long-running graphs run on Temporal. Each node executes as a Temporal Activity, so the runtime survives process restarts, scales horizontally, and can be paused/resumed.

# Time-travel API
GET    /api/temporal-time-travel/history/:runId   # full event history
POST   /api/temporal-time-travel/replay           # re-execute from a chosen step
POST   /api/temporal-time-travel/fork             # fork into a new run with optional input override
GET    /api/temporal-time-travel/runs             # list durable runs (filterable)

UI: /admin/temporal/durable lists all durable runs; /workflows/[graphId]/runs/[runId] shows the full step-by-step trace with a “replay from here” affordance.

Each node receives account-bound credentials via resolveForNode inside Activities, so Activities never leak access tokens. Search-attributes are wired for fast queries by graphId, userId, and status.

Partial Execution (W16-9)

Re-run only the dirty nodes when a workflow changes — not the entire DAG.

Pure-logic core in @mify/core — diffs current graph vs the last published version, marks downstream-of-dirty nodes
Postgres-backed cache (PartialExecutionCache model) — node outputs cached by content-hash
DirtyNodesIndicator UI on canvas visualizes which nodes will re-run
OversizedOutputBadge flags nodes whose outputs exceed cache-row limits

POST   /api/canvas-execute                  # incremental run from canvas
POST   /api/canvas-execute/admin/cache-clear  # purge cache (admin)

Realtime Collaborative Canvas (W16-8)

Multi-user canvas editing with Hocuspocus + Yjs.

@mify/collab package: Yjs schema + bidirectional Y.Doc ↔ MifyGraph conversion
Hocuspocus server with Postgres persistence (GraphYjsState model) and SuperTokens auth handshake
useCollabCanvas hook handles Hocuspocus provider + remote-update receive path
Presence cursors — live multi-user cursor tracking with name + color
Y.Doc save-back to canonical MifyGraph keeps graph-versioning intact

Workflow as Public API (W16-3)

Each Published workflow exposes a stable HTTP endpoint with auto-generated OpenAPI.

POST   /api/workflow-endpoints/:slug              # invoke workflow by slug (per-API-key rate limit)
GET    /api/workflow-endpoints/:slug/openapi.json # auto-generated OpenAPI 3.1 spec
GET    /api/workflow-endpoints/:slug/info         # URL + sample curl + rate-limit policy

UI: WorkflowEndpointInfo panel on /graphs/[graphId]/versions.

Workflow as MCP / A2A / Agent Protocol

Each Published workflow is automatically exposed across three agent protocols:

# MCP (W16-4) — any MCP client can list + call workflows
GET    /api/workflow-mcp/list_tools
POST   /api/workflow-mcp/call_tool

# A2A v1.0 (W16-5 + W17-7/8)
GET    /api/a2a-server/.well-known/agent-card    # AgentCard with auto-populated skills
POST   /api/a2a-server/tasks/send
GET    /api/a2a-server/tasks/:id

# LangGraph Agent Protocol (W17-9 + W19-1)
GET    /api/agent-protocol/agents
POST   /api/agent-protocol/agents/:id/invoke
POST   /api/agent-protocol/agents/:id/stream

All three live in @mify/agents-network. The OpenAI Agents SDK adapter node (W19-2) handles the outbound direction — call any OpenAI Assistant from a Mify graph.

Workflow Settings

PUT    /api/graphs/:id    # metadata-merge with allowlist
                          # (name, description, slug, scheduleHints, endpointAuth, tags, ...)

UI at /graphs/[graphId]/settings with cross-link from the versions page.

Anonymous Demo Runner

Public unauth runner for starter templates, with rate-limit + LLM router + global daily gauge.

POST   /api/public-demo-run/start          # start an anonymous run
GET    /api/public-demo-run/:runId/status
GET    /api/public-demo-run/:runId/events  # SSE event stream

AnonymousLlmDailyUsage model enforces a hard daily token ceiling globally. Cleanup cron + boot gate prevent runaway costs. UI wrapper at /templates/starter/[slug].

AI Builder + Multi-Agent Strategies

POST   /api/ai-builder/generate    # NL → workflow graph (W15-5)

Multi-agent runtime supports 4 strategies:

Plan-and-Execute — decompose goal → execute subtasks
Reflection — generate-then-critique loop
Supervisor — hierarchical coordinator + workers
Swarm — peer-to-peer message bus

Forms System

Multi-page form builder + workflow trigger, fully wired:

POST   /api/forms              # create form (workspace-scoped)
GET    /api/forms/:id          # render-time form definition
POST   /api/forms/:id/submit   # submit → calls FormTriggerPlugin → triggers workflow

UI: /forms (list), /forms/[formId] (render), /forms/[formId]/builder (drag-drop multi-page builder with conditional fields). Persistence via the MifyForm Prisma model. The FormTriggerPlugin (packages/triggers/src/plugins/FormTriggerPlugin.ts) handles the trigger side.

Public unauth chat widget for franchise sites:

POST   /api/chat-widget/message    # Public unauth Demo 0 endpoint

Hardened with rate-limit, quota guard, redaction (W15-14). Powers /embed/chat.

Graph Schedules

Cron-based graph execution stored in PostgreSQL:

# Create schedule from template
POST /api/home/schedules/from-template

# Check if execution is waiting for HITL approval
GET /api/home/schedules/:id/waiting

# Approve paused execution
POST /api/home/schedules/:id/approve

# Execution history
GET /api/home/schedules/:id/executions

Supports webhook notifications for schedule events.

Plugin System

Build, test, and publish plugins:

npx mify-plugin init my-plugin
npx mify-plugin dev      # Hot reload dev server
npx mify-plugin test     # Run tests
npx mify-plugin validate # Check manifest
npx mify-plugin publish  # Publish to marketplace

Plugin manifest v1.4.0 — extend with custom nodes, adapters, and credentials. Sandboxed execution in V8 or WASM runtimes.

Plugin guide: Plugin Development

Hub & Integrations

Integration Hub (`/integrations`)

Central discovery page for 28+ platform integrations. Platform registry with health monitoring, quick-connect flows.

Platform Adapters

Track A (native): Dify, Flowise, Langflow, n8n, OpenClaw, RAGFlow, DocuSeal
Track B (registry-driven): 28+ self-hosted and SaaS platforms

OAuth Integrations

Gmail, Outlook (email)
Google Calendar, Outlook Calendar
Composio connector marketplace

Platform Package (`@mify/platform`)

8 service interfaces: Identity, Payments, Ledger, Jobs, AIExecution, Media, Events, Notifications. Studio-backed adapters with JWT auth.

Home Runtime (Local Agent Execution)

Run AI coding agents locally:

CAO multi-agent backend — coordinate Claude Code + Codex with human review
9-state FSM — INIT → Agent1 → Diff → Agent2 Review → Human Gate → Done
Cron scheduler — scheduled agent runs with timezone support
LiteLLM client — model selection and provider-aware scheduling
Prompt templates — structured prompt assembly with provenance tracking

WebSocket bridge on port 3020. API: /api/home/schedules, /api/home/sync.

Guide: Home Client

Execution Engine

Three execution classes:

Deterministic — same input = same output (Template, JavaScript nodes)
Probabilistic — AI nodes where output varies (Chat, Embed)
Opaque — external platform calls (Dify, Flowise)

Trust levels: Trusted → Semi-Trusted → Opaque. Rigor modes: Experimental (fast) vs Audited (full trail).

Batch processing with concurrency control, pause/resume/cancel.

Guide: Execution & Trust

Content Generation Pipeline

Three paths:

Path	How	Best For
MIFY Queue	ComfyUI workflows → GPU providers (Novita, Vast)	High-quality image/video
AI Provider	Direct AI calls, sync or SSE streaming	Text, quick images
ComfyUI Local	Local GPU	Custom models

WorkflowDefinition model with 12 override types, 11 UI widgets for dynamic forms. Redis-based rate limiter, Prometheus metrics, cost tracking.

Guide: Content Generation

AI Providers (140+ via LiteLLM, 16 native)

16 native: OpenAI, Anthropic, Google Gemini, Groq, Mistral, Cohere, xAI, DeepSeek, Together AI, Fireworks, Hugging Face, OpenRouter, SambaNova, GitHub Models, Cloudflare Workers AI, Ollama.

140+ providers / 2,600+ models / 35 unique endpoints via LiteLLM — live count at models.litellm.ai/providers. Admin at /admin/litellm.

Provider packs (Fast/Balanced/Accurate), BYOK credential management, cost estimation.

Guide: AI Provider System

Cloudflare Native Nodes (12)

D1: Query
KV: Get, Put, List, Delete
R2: Get, Put, List, Delete
Vectorize: Query, Upsert
Queues: Send

Marketplace API

# Expert services
GET    /api/experts              # Browse experts
POST   /api/jobs                 # Post a job
POST   /api/bids                 # Submit a proposal

# Solutions
GET    /api/solutions            # Browse solutions
POST   /api/purchases            # Purchase a solution

# Payments
POST   /api/escrow               # Escrow operations
GET    /api/payouts              # Payout management

Database

Main DB: PostgreSQL with Prisma 6 (173 models). Franchise DB: separate bounded-context database (10 models).

Testing

1200+ E2E tests across 157 Playwright spec files. Vitest for unit tests.

pnpm test              # All unit tests
pnpm test:e2e          # Full E2E suite
pnpm test:e2e:smoke    # Fast smoke tests

Key Resources

Resource	Link
Interactive API Explorer	/api-explorer/
API Reference	/reference/api-reference/
Building Workflows	/guides/workflows/
Plugin Development	/guides/plugins/
Platform Connections	/guides/connections/
Content Generation	/guides/content-generation/
Home Client	/guides/home-client/
Glossary	/reference/glossary/
